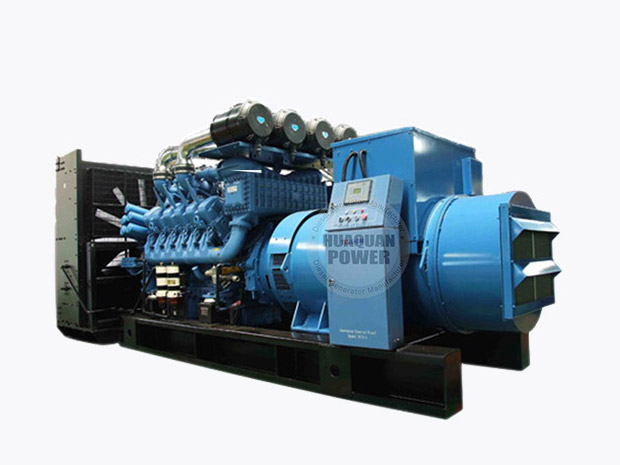

奔馳MTU發電機組
技術規格：
| 型號 | 發電機功率 | 發動機型號 | 尺寸L×W×H(mm) | 重量(KG) | |
| 常用功率(KW/KVA) | 備用功率(KW/KVA) | ||||
| HQM113GF | 113 | 124 | 6R183AA32 | 2560×1090×1090 | 1700 |
| HQM160GF | 160 | 176 | 6R183TA32 | 2700×1090×1380 | 1830 |
| HQM200GF | 200 | 220 | 8V183TA32 | 2550×1090×1380 | 2080 |
| HQM220GF | 220 | 244 | 8V183TE32 | 2615×1090×1380 | 2100 |
| HQM320GF | 320 | 350 | 12V183TA32 | 2950×1385×1590 | 2730 |
| HQM370GF | 370 | 396 | 12V183TE32 | 3260×1500×1940 | 3030 |
| HQM400GF | 400 | 440 | 12V183TB32 | 3065×1580×1995 | 3170 |
| HQM440GF | 440 | 480 | 12V183TB32L | 3170×1760×1995 | 3420 |
| HQM520GF | 520 | 572 | 12V2000G23 | 3890×1630×1950 | 5200 |
| HQM560GF | 560 | 616 | 12V2000G63 | 3890×1630×1950 | 5460 |
| HQM660GF | 660 | 726 | 16V2000G23 | 4330×1770×1950 | 6150 |
| HQM728GF | 728 | 801 | 16V2000G63 | 4368×1770×2322 | 6250 |
| HQM800GF | 800 | 880 | 18V2000G63 | 4570×2020×2210 | 7160 |
| HQM1120GF | 1120 | 1232 | 12V4000G21 | 5220×2085×2300 | 10600 |
| HQM1232GF | 1232 | 1355 | 12V4000G61 | 5320×2085×2755 | 10860 |
| HQM1480GF | 1480 | 1628 | 16V4000G21 | 5775×2415×2905 | 13450 |
| HQM1600GF | 1600 | 1760 | 16V4000G61 | 6080×2580×3045 | 14185 |
| HQM2000GF | 2000 | 2200 | 20V4000G22 | 6000×2200×2500 | 17500 |
| HQM2200GF | 2200 | 2400 | 20V4000G62 | 6000×2200×2500 | 18000 |
